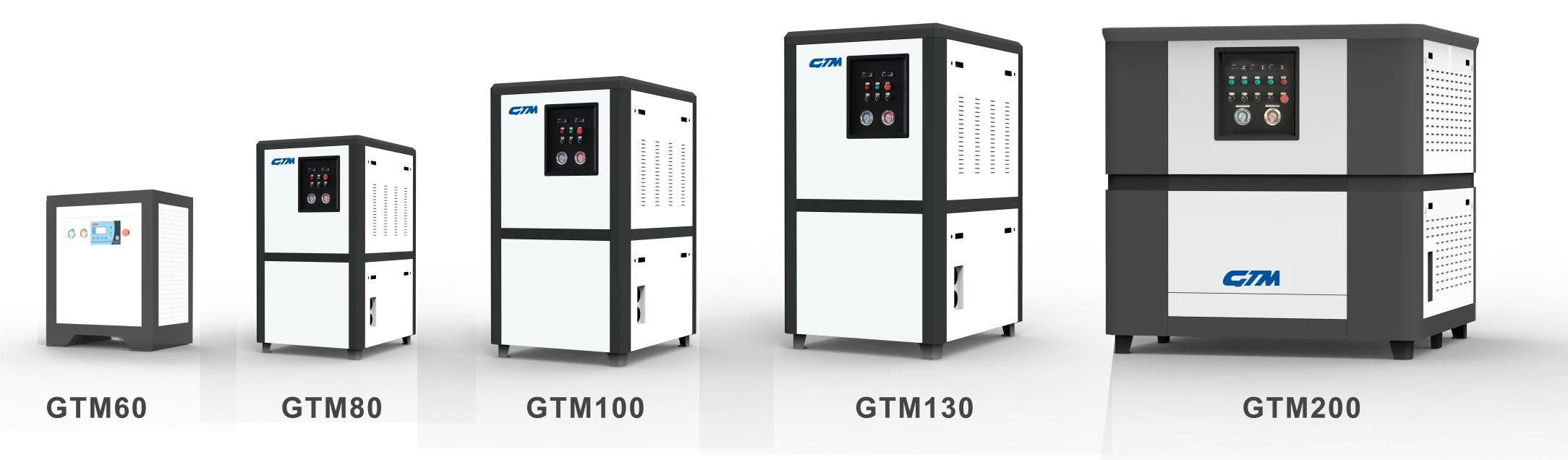

GTM-60
2 t/day catalogue rating
600 × 800 × 1000 mm
GTM-80
4 t/day catalogue rating
680 × 880 × 1350 mm
GTM-100
6 t/day catalogue rating
1200 × 1000 × 1550 mm
GTM-130
8 t/day catalogue rating
1200 × 1000 × 1850 mm
GTM-200
12 t/day catalogue rating
1530 × 1550 × 1480 mm
Which model fits your project?
| Model | Catalogue output | Compressor rating | L × W × H (mm) |
|---|---|---|---|
| GTM-60 | 2 t/day | 2 HP | 600 × 800 × 1000 |
| GTM-80 | 4 t/day | 4 HP | 680 × 880 × 1350 |
| GTM-100 | 6 t/day | 6 HP | 1200 × 1000 × 1550 |
| GTM-130 | 8 t/day | 8 HP | 1200 × 1000 × 1850 |
| GTM-200 | 12 t/day | 12 HP | 1530 × 1550 × 1480 |
These are manufacturer catalogue ratings. Confirm whether the output basis is ice mass or total slurry mass, together with ice fraction, inlet water temperature and ambient conditions. Compressor ratings are component values, not total system electricity demand.
How does slurry ice take shape?
The demonstration moves from the machine controls to a tank, where fine ice crystals become visible in the liquid mixture. A later shot shows the texture being sampled with a scoop. Use the sequence to discuss generation, storage and the consistency required at your point of use.
This edited sequence illustrates ice formation. Its time labels do not establish a rated output or identify a particular catalogue model.
Buyer questions
Can the same model support preservation and cleaning?
Yes. Model selection starts from the same GTM equipment range. A seafood system, a pipe-cleaning package and an algae glass-tube cleaning arrangement need application-specific water, interfaces, pumps and operating controls. Share the application before the final configuration is selected.
What equipment can be supplied around the generator?
Discuss insulated storage, mixing, pumping, heat rejection and controls. Browse system accessories and custom cleaning equipment. The quotation identifies included items and customer-supplied utilities.
What should I confirm before ordering?
- Useful output and ice fraction under your water and temperature conditions.
- Voltage, frequency, total electrical demand and heat rejection.
- Current refrigerant option and destination requirements.
- Space, service clearance, connections and operating procedure.
How do I request a machine quotation?
Send your country, application, required daily or batch duty and available utilities. For custom pipework, include a layout or a description of the circuit.
