Catalogue specifications

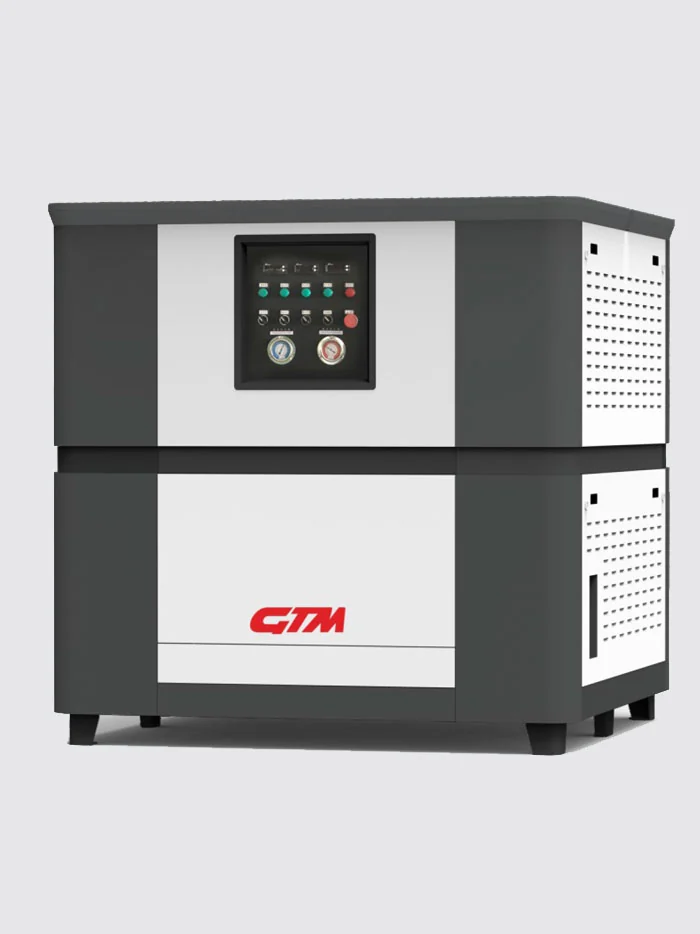

| Model | GTM-200 |
|---|---|
| Catalogue daily output | 12 t/day |
| Compressor rating | 12 HP |
| Compressor model / listed power | SP4LN1200 / 9 kW |
| Catalogue weight | 1560 kg |
| Dimensions, L × W × H | 1530 × 1550 × 1480 mm |
| Gear motor | 4.4 kW |
| Slurry outlet pump | 1.5 kW |
| Cooling auxiliary | 1.5 kW cooling-water pump |
| Legacy refrigerant listing | R22 / R404A |
| Legacy refrigeration oil code | M |
Output is a catalogue reference; its mass basis, ice fraction and test conditions must be stated in the quotation. Component power values do not represent total system input. Legacy refrigerant and oil entries are historical catalogue information; request the current destination configuration.
Can this model be configured for cleaning?
Yes. The base machine uses the same model specifications as the preservation range. Pipeline cleaning and algae glass-tube cleaning are configured around the circuit, deposits, liquid requirements and acceptable operating conditions. A model rating alone does not define a complete cleaning package.
How much space should I allow?
Use the listed equipment dimensions for the initial layout. Add service access and space for storage, pumps, heat rejection and connections. Obtain the final arrangement drawing before preparing a foundation, vessel opening or container installation.
What affects usable output?
Water temperature, salinity, ambient conditions, ice fraction and the operating cycle affect the agreed duty. Specify the required quantity and time period so the quotation can distinguish total slurry delivery from solid ice production.
Which accessories do I need?
The process determines storage, pumps and cooling equipment. Pump selection needs flow, pressure, pipe route and slurry properties. The final supply list confirms compatibility and whether each item is included.
How do I request this model?
Send Roy your country, intended use, operating conditions and available power. Include this model name and the required scope in your enquiry.
